Why Barbed Electric Wire Offers Superior Property Protection
Barbed electric wire pairs two proven deterrents—sharp steel barbs and a safe, pulsed electrical shock—into one highly visible, always-on security barrier. For homes, businesses, and ranches around Greater Austin, the combination quickly teaches people and animals to respect your perimeter while costing far less than many high-tech alternatives.
Benefits at a glance:
- Physical + psychological deterrent
- Works for residential, commercial, and agricultural sites
- Operates 24/7 with minimal monitoring
- Long service life when installed with high-tensile, galvanized wire
Invented in the 1870s to tame open range, barbed wire remains a staple because it’s simple and effective. Adding modern energizers lifts that legacy fence into a smart security system that’s ready for anything.

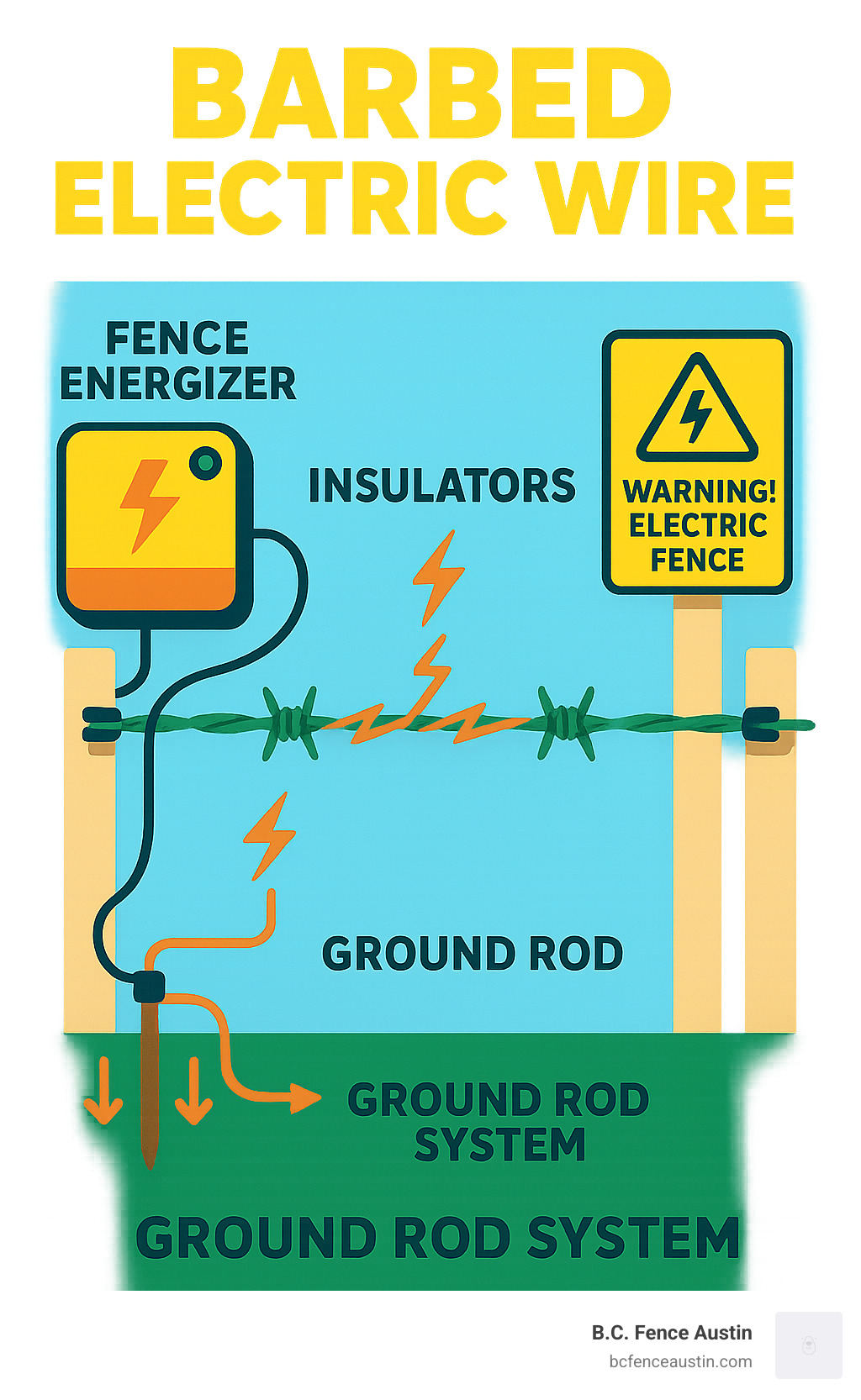

Deconstructing the System: What Is Barbed Wire and How Is It Electrified?
Barbed electric wire is a “tag-team” fence: hardened steel strands dotted with barbs provide the physical stop, while a fence energizer sends short, high-voltage pulses that create the mental stop. Lucien B. Smith secured the first U.S. barbed-wire patent in 1867, and Joseph Glidden’s 1874 modern patent made large-scale fencing affordable across the West. Today the same wire, now high-tensile and heavily galvanized, can be electrified in three key parts:
- Energizer (Charger) – Turns household or solar power into 5,000–10,000-volt, low-amp pulses.

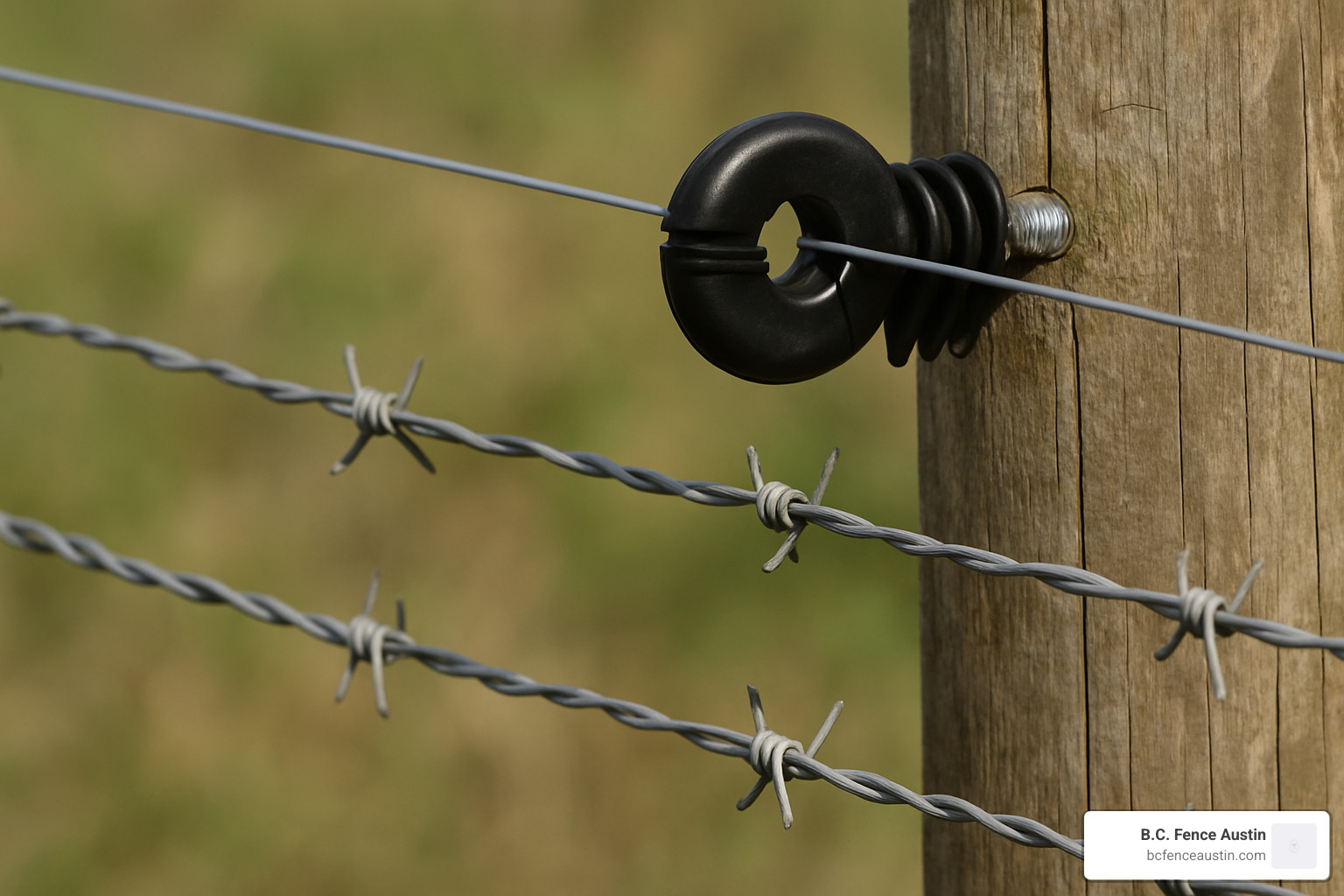

- Conductor – The barbed wire itself, insulated from posts so current stays on the fence until touched.
- Grounding System – Galvanized rods driven into moist soil complete the circuit and let the pulse flow through the intruder and back to the energizer.
Wire Options
- Single-strand or double-strand twist
- High-tensile steel (180–200 KSI) for long spans & fewer repairs
- Zinc, Class III, or zinc-aluminum coatings for 15–20-year rust resistance
- 12.5-gauge for security; 15.5-gauge for light duty
Why the Shock Is Safe
Pulses last only milliseconds and deliver under 5 mA—enough to startle, not injure. The result is a fence that’s tough to breach yet safe for livestock, pets, and people who might accidentally brush against it.
Choosing Your Materials: Wire and Critical Components
Getting the materials right up-front saves years of maintenance headaches.
Picking the Wire
| Feature | Low-Tensile (Soft) | High-Tensile |
|---|---|---|
| Strength | Moderate | 180–200 KSI |
| Stretch | High | Minimal |
| Post Spacing | 8–12 ft | 15–20 ft |
| Best For | Temporary or repair | Permanent, high-security |
Use 12.5-gauge, Class III galvanized high-tensile wire for most Austin-area security jobs. Add 4-point barbs when maximum intimidation is required. Coastal or humid sites may benefit from zinc-aluminum (Galfan) coating—learn more here.

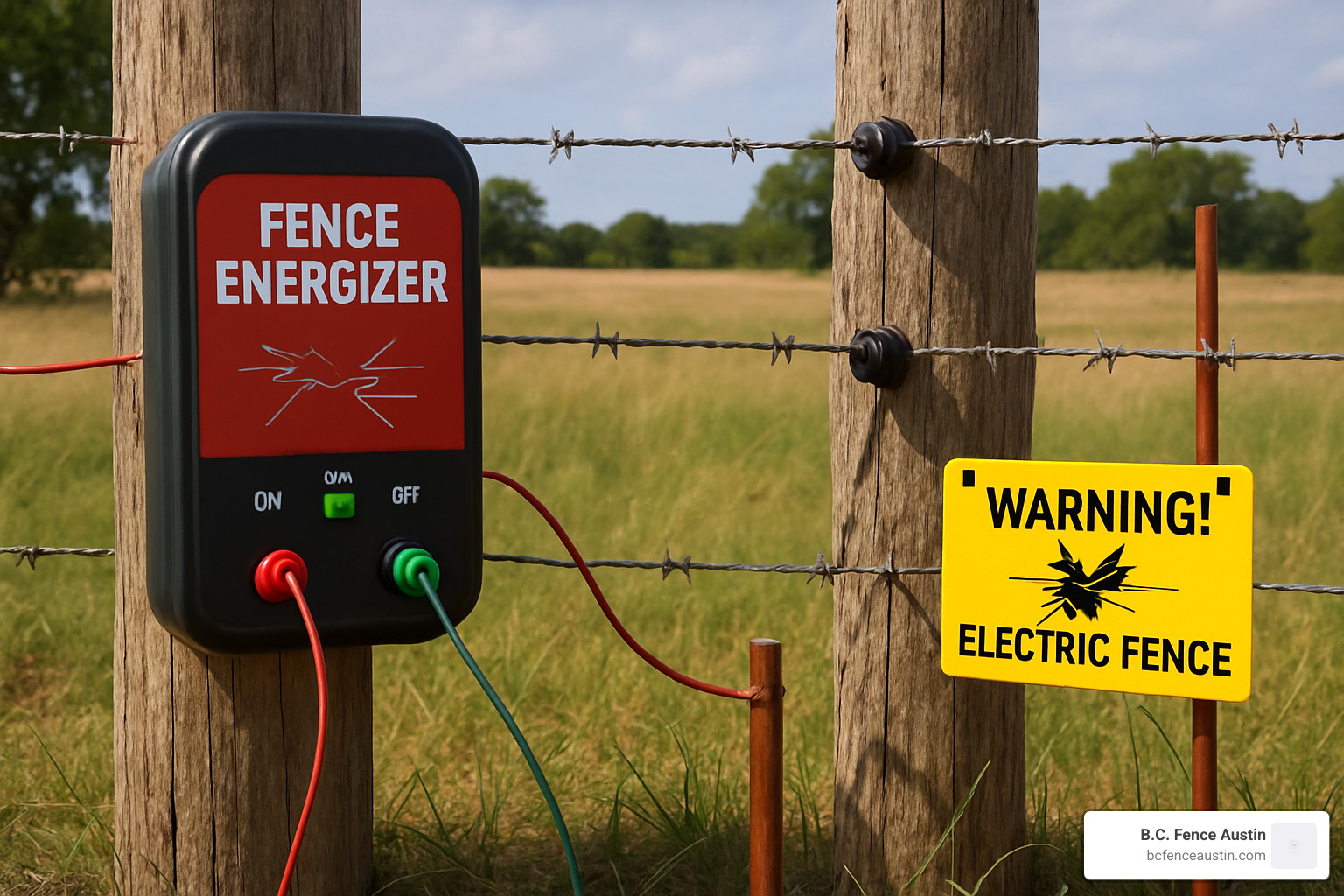

Essential Electrification Parts
- Energizer (AC, DC, or solar)
- Post-specific insulators
- Three 6-ft ground rods spaced 10 ft apart
- Warning signs every 200 ft or at entrances
- Voltage tester, insulated gate handles, and lightning diverter
Quality here equals constant, even voltage and fewer service calls later.
Installation in Three Streamlined Steps
Before digging, call 811 and check local ordinances for height, setback, and signage rules in Austin, Round Rock, or any of the nine communities we serve. PPE—heavy gloves, eye protection, and long sleeves—is mandatory around barbs.
1. Plan & Set Posts

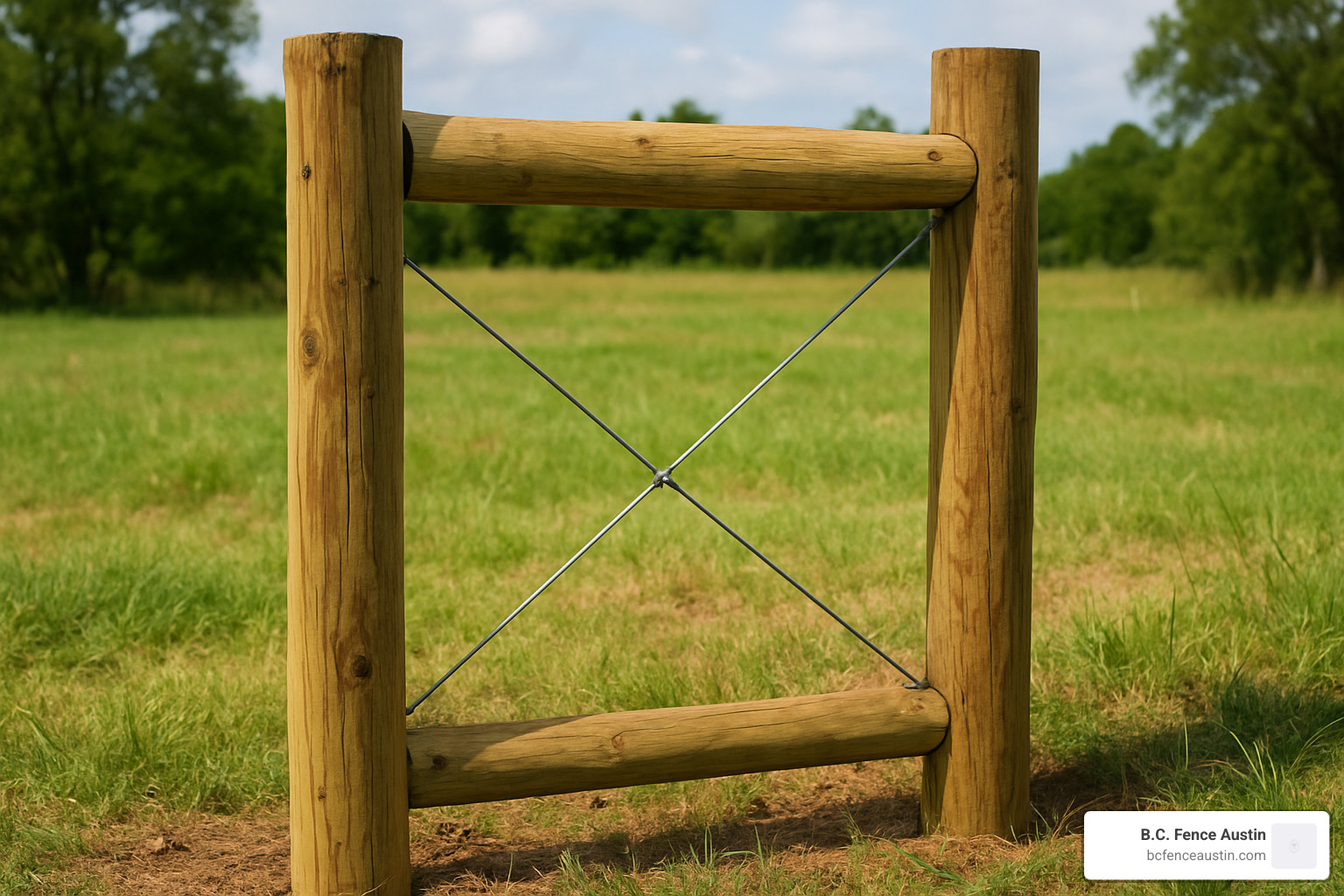

Map the perimeter, mark gates, then install brace corners first. Use 6–8-in-diameter treated posts buried one-third of their length. Line posts (treated wood or steel T-posts) usually space 15 ft apart with high-tensile wire.
2. String & Tension Wire
Unroll wire with a spinner to avoid kinks. Attach to one brace, pull tight with a come-along, and secure to the opposite brace. Staples on wood posts should grip but not pinch; T-post clips should allow slight movement for temperature changes.
3. Electrify & Test
Mount the energizer in a weather-protected spot, drive ground rods, and hook up insulated lead-out wire. Snap insulators onto every post, connect the barbed wire, then test voltage at several points—5 kV or higher is ideal. Troubleshoot any weak spots before calling the job done.
Beyond the Pasture: Modern Security Uses
Barbed electric wire isn’t just for livestock. Around Austin you’ll spot it:

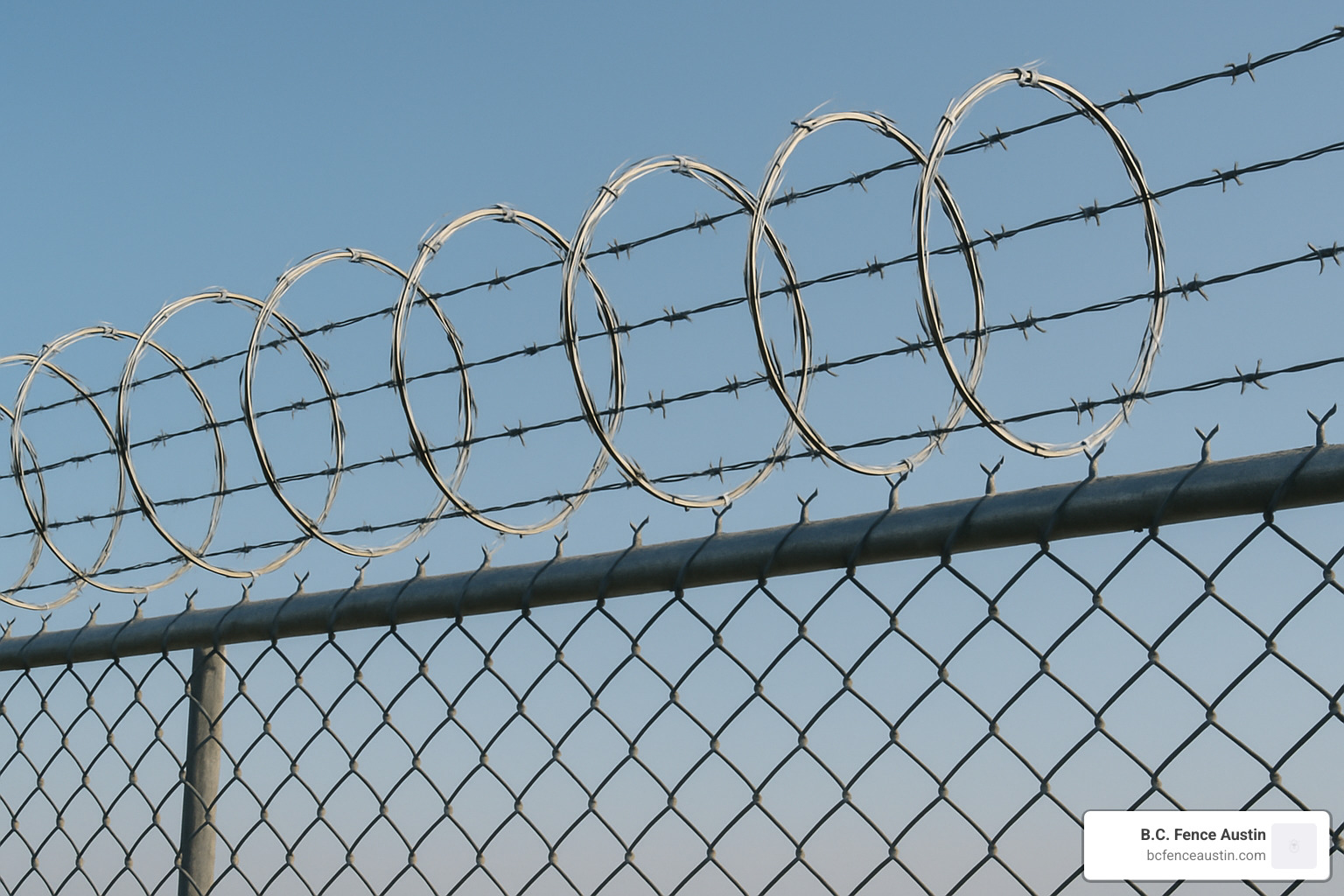

- Topping chain-link to protect warehouses, storage yards, and data centers
- Guarding construction sites where equipment sits unattended overnight
- Securing vacant or foreclosed properties from trespassers and vandals
- Providing affordable perimeter defense for large industrial campuses
Its visibility scares off opportunists; the shock stops the few who try anyway.
Safety, Legalities, and Upkeep
Safety First
Modern energizers limit current to a safe level, but the wire still punctures skin. Post clear warning signs and keep the bottom strand high enough (18 in) for wildlife to pass underneath where practical.
Know the Rules
Regulations shift between Cedar Park subdivisions and rural Liberty Hill acreage. Typical requirements include:
- Max 6-ft height in residential zones
- Setbacks from sidewalks and rights-of-way
- Mandatory signage every 200 ft
Check local code and your insurer before installing.

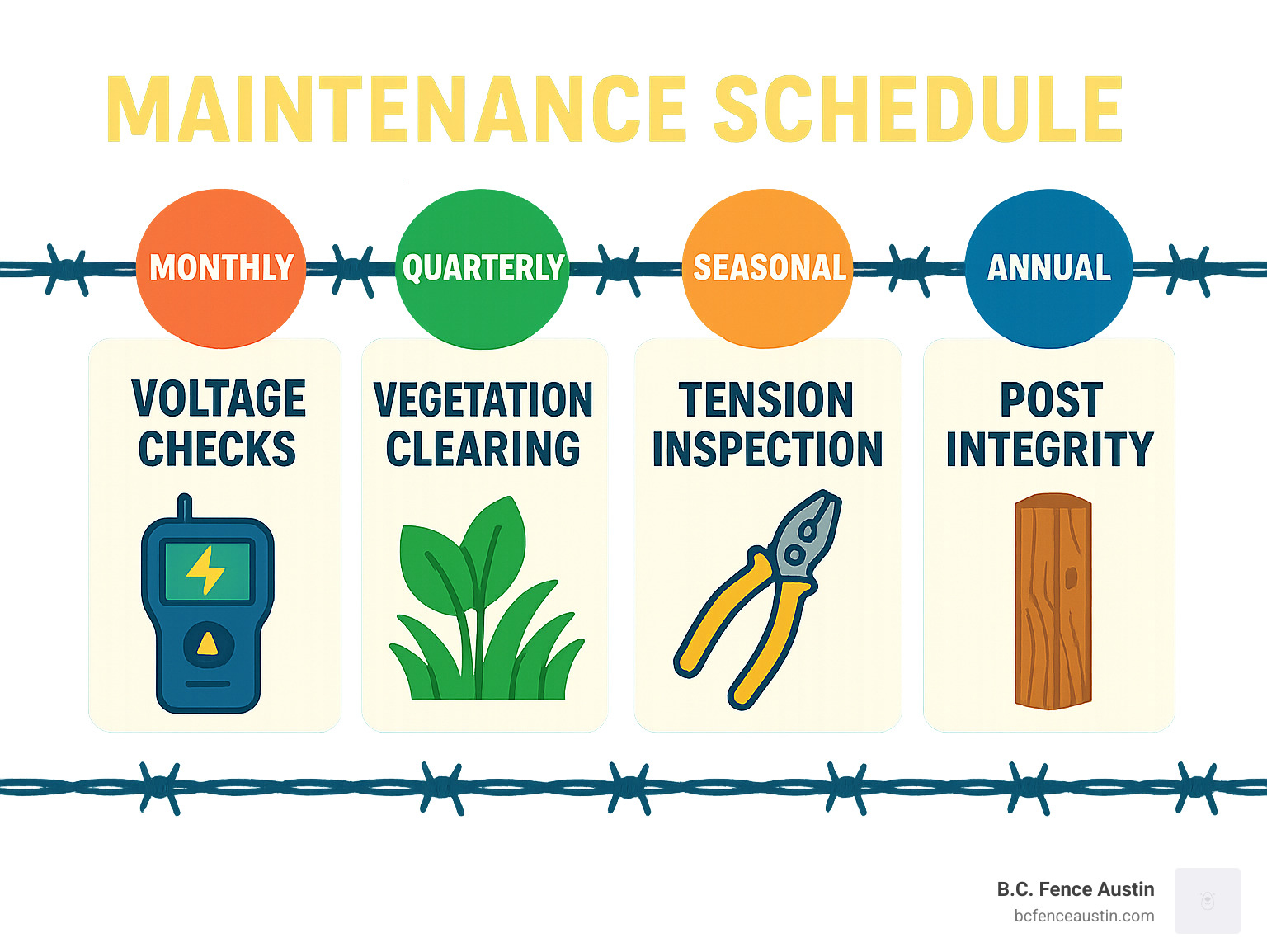

Maintenance Quick-List
- Monthly: test voltage
- Quarterly: trim vegetation
- Seasonally: check tension & insulators
- Annually: inspect posts and grounding rods
Frequently Asked Questions
Is a barbed electric fence legal on my property?
Often yes for agricultural and many commercial sites, but residential rules vary. Always confirm zoning, height limits, and signage laws with your municipality before you build.
How does it differ from a standard electric fence?
Smooth-wire electric fences rely only on shock. Barbed electric wire adds a visible, physical barrier that still works if the power is out.
Can I electrify my current barbed fence?
Usually. The wire must be in good shape, posts sturdy, and new insulators added. A proper energizer and ground system complete the upgrade.
Secure Your Perimeter with Confidence
Barbed electric wire delivers round-the-clock protection: a barrier you can see and a lesson you can feel. When installed correctly, it discourages trespassers, protects assets, and boosts property value.
